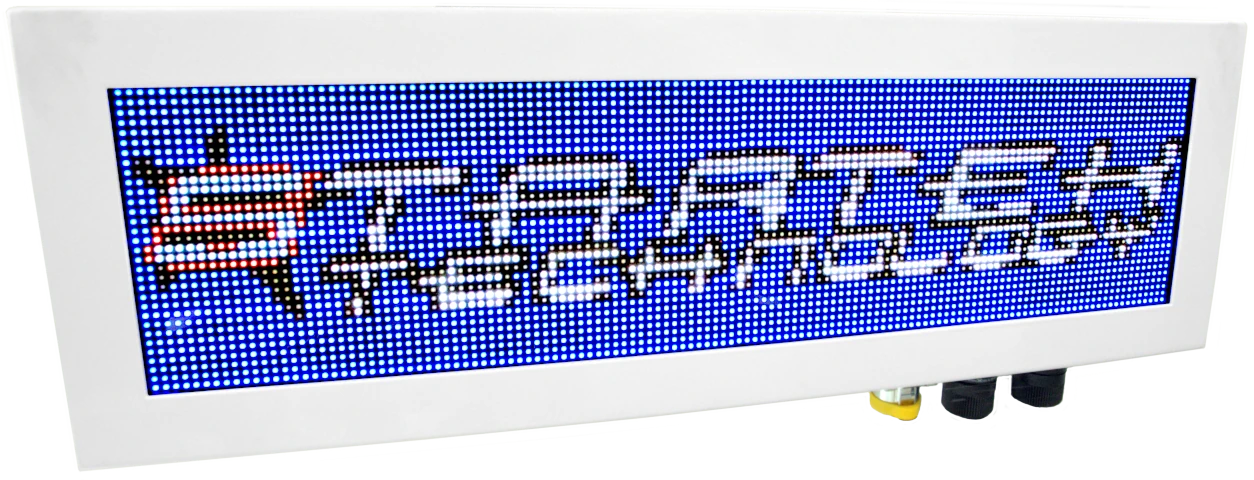

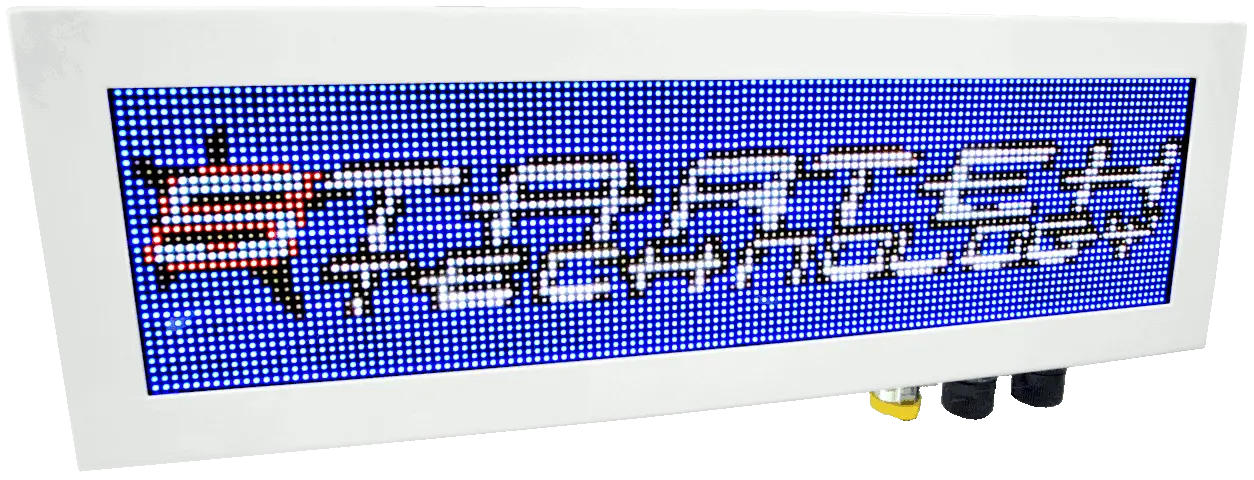

Startek's high-durability LED display allows for reliable and clear indication in the roughest of
industrial and commercial environments.
Sporting high-luminosity outdoor LED panels, the STM42 is clearly visible even on the brightest
of days, avoiding washout that other displays experience.
Originally designed for weight indication, the display supports a large variety of serial and
TCP/IP protocols, and can be extensively customised to fit every environment it is installed into.
To order your STM42 today!

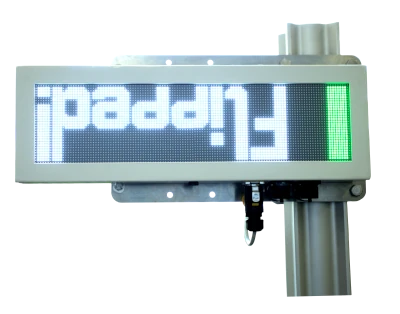

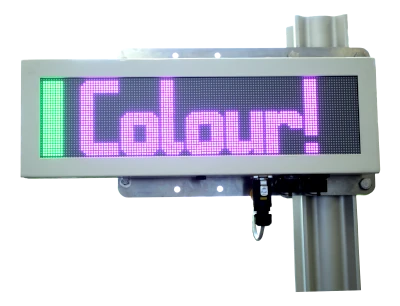

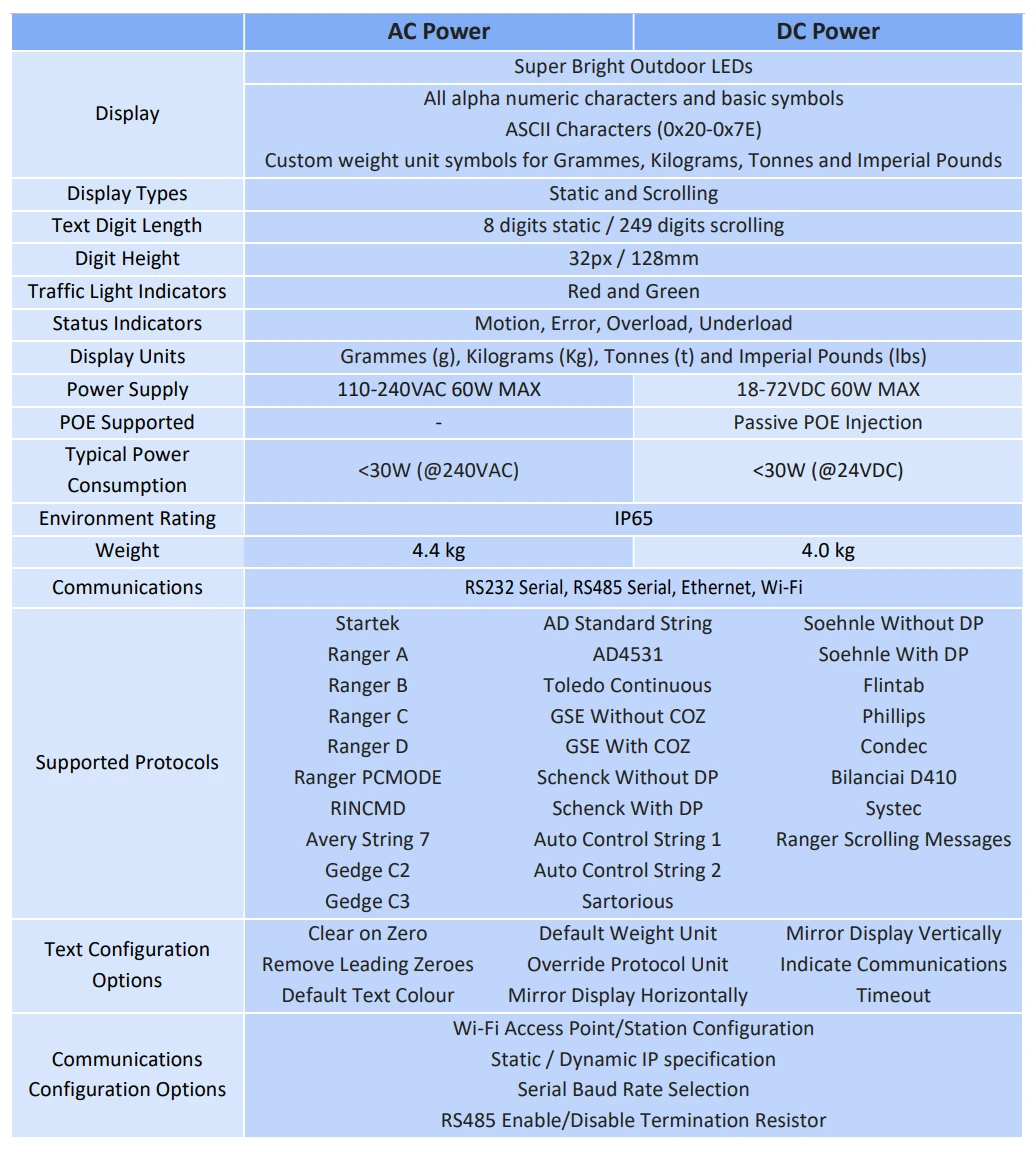

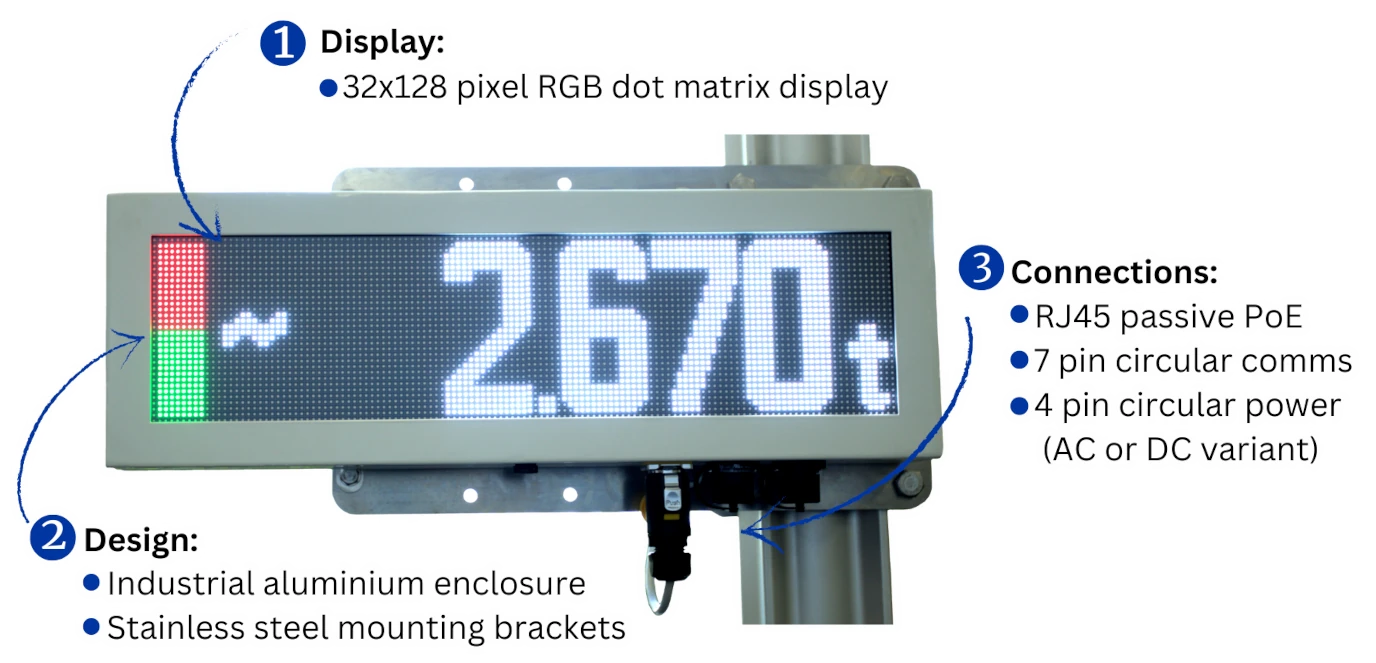

The STM42 features a high-power 32x128 pixel outdoor LED dot matrix capable of displaying
text
in any
brightness, colour, or orientation.

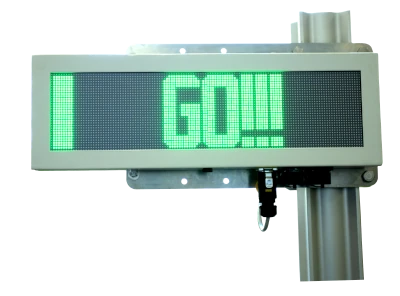

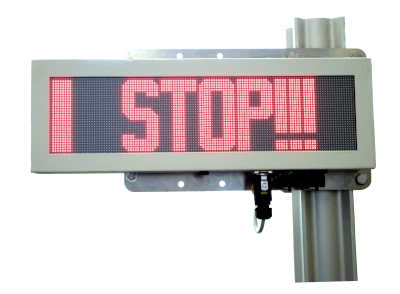

The device has a red and green traffic light system integrated alongside the text display,
providing clear communication for users.
All alphanumeric characters and symbols are supported, with additional weight unit
characters formatted for the display of grammes, kilogrammes, tonnes, and imperial pounds.

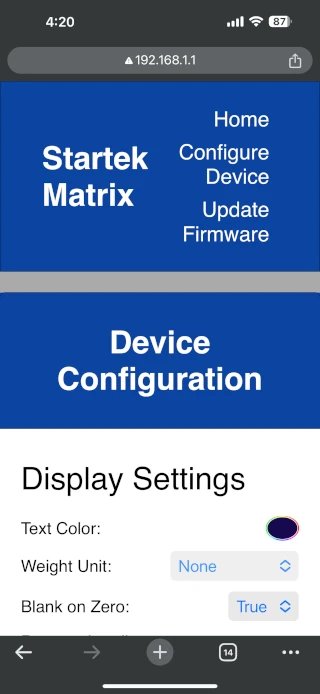

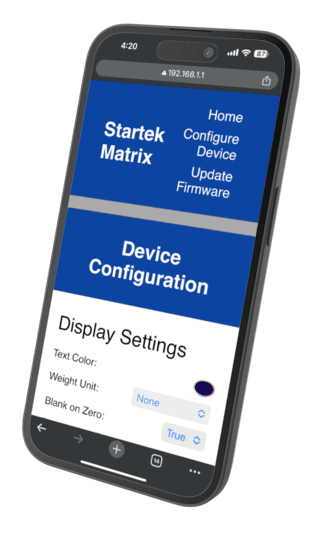

The easy to use customisation webpage hosted by the device allows the user to change the
device's settings on their phone.
The appearance and layout of the text, the implementation of the traffic light system,
and how
to display errors, units, and other data flags can all be modified to fit the user's
implementation.

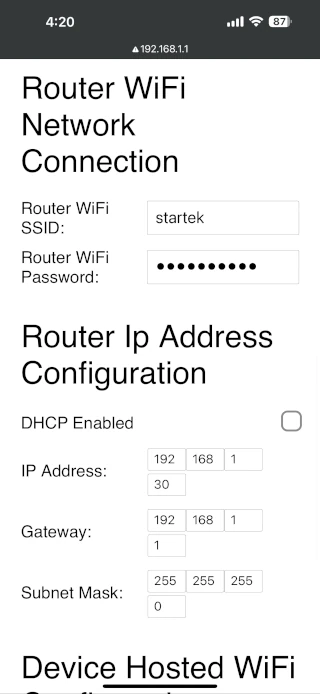

Communications settings such as serial baud rates, device IP address, and WiFi
connection settings can also be modified.

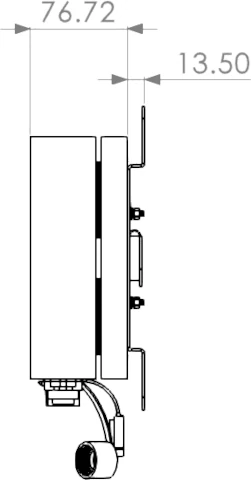

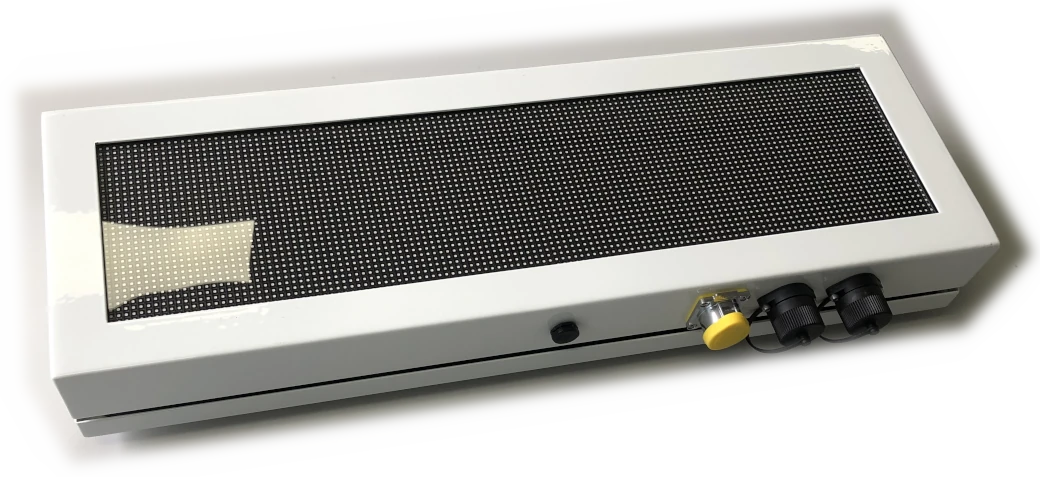

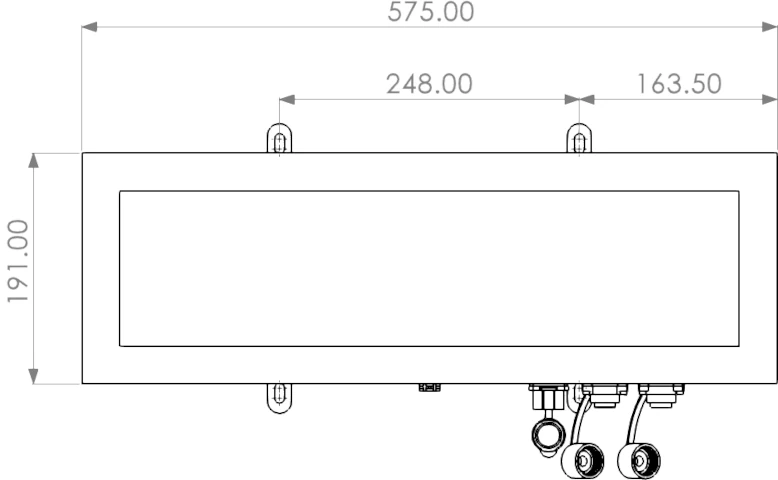

The STM42's clean and robust design has been engineered for all weathers and environments.
The device's all-aluminium enclosure allows for a lightweight form that makes it easy to
install at height.
The LED acrylic cover makes the display impact resistant against accidental knocks and damage.
The additional stainless steel mounting brackets allow for more options during installation,
and won't rust away like traditional steel mounting hardware.
The STM42 comes equipped with Mil-Spec circular connectors for both power and comms that
wont vibrate loose or allow water or dust to enter their connection terminals.
The 7-pin Comms connector features RS232 and RS485 serial input, and provides both
traffic light signals, and a low-current 5V output.
Ethernet and POE connection for the DC variant is performed through the weatherproof
RJ45 connection socket.
The 4-pin power connection comes in both a 110-240V AC variant, and an 18-72V DC
variant.
